High-Purity Flow Control Solutions
Engineered for Critical Bioprocess Applications.
Acuflow brings Carten Controls’ high-performance valves and flow solutions to pharmaceutical, biopharma and other critical-process environments. Carten designs and manufactures solutions for ultra-high-purity systems where cleanliness, containment, delivery, process efficiency and reliability are critical — from individual valves through to integrated flow solutions.

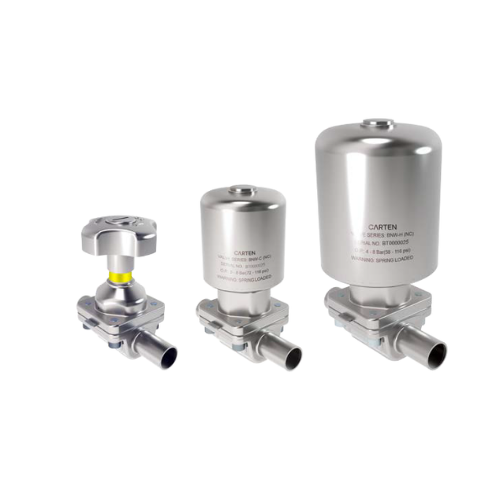

BNW Diaphragm Valve Series
Sanitary Diaphragm Valves
Carten’s BNW series uses a unique diaphragm design intended to eliminate constant diaphragm re-tightening after SIP and to enable rapid changeout at each batch change.
Features
- Available in line sizes up to 4 in
- Single-polymer bonnet external seal
- Pneumatic or manual interchangeability
- Standard and bespoke multiport / block options
- Shut-off, control and back-pressure functionality
- Automation and switching / signalling options
- Suitable across upstream and downstream bioprocess operations
Technical Specifications
Typical Applications
- Bioreactor
- Filtration
- Chromatography
- Centrifugation
- Upstream shut-off / control
- Downstream shut-off / control

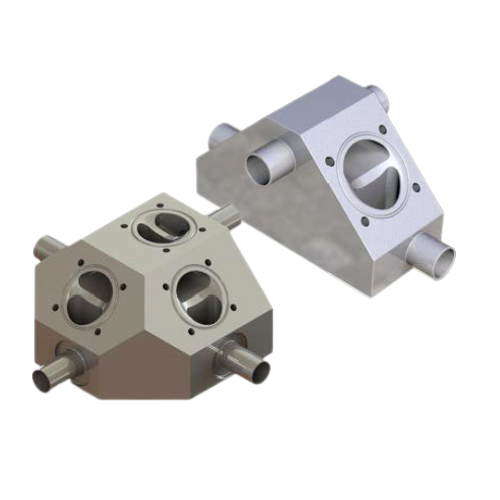

BNW Block Series
Sanitary Diaphragm Block Valves
The BNW Block Series carries the advantages of the standard BNW platform into bespoke block designs developed to minimize hold-up volume and compact multiple valve functions.
Features
- Available in line sizes up to 4 in
- Single-polymer bonnet external seal
- Pneumatic or manual interchangeability
- Standard and bespoke multiport / block options
- Multiple block orientations and configurations
- Minimum hold-up volume
- Instrumentation and signalling options
Technical Specifications
Benefits
- Reduces process pipework footprint
- Supports lower hold-up volume and reduced dead space
- Can consolidate multiple conventional valves into one compact block
- Reduces installation complexity
- Supports application-specific hygienic layouts

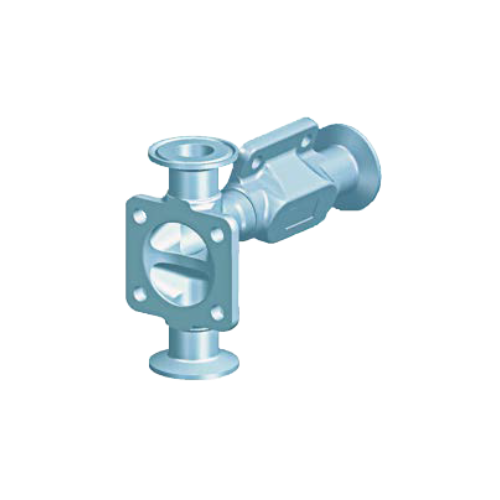

Tandem / Custom Valve Solutions
Application-Specific Multi-Valve Engineering
The Acuflow capabilities brochure describes Carten tandem valves as customized solutions in which an access valve is typically welded to a main valve to create GMP or SAP configurations. These are engineered to improve drainability and minimize dead legs. Carten’s current website supports a broader engineer-to-order approach but does not provide a dedicated public Tandem Valve product page.
Features
- Application-specific configuration
- Designed to improve drainability
- Designed to minimize dead legs
- Welded access-valve / main-valve configurations
- GMP or SAP configurations
- Full material certification
- Can be developed within Carten’s broader custom block / multiport engineering approach
Engineering Approach
Omnia Pinch Valve Series
Single-Use Pneumatic Pinch Valves
Carten’s patented Omnia single-use pinch valves are engineered for biopharmaceutical manufacturing and can be used with multiple tubing brands and flow kits, including reinforced lines. Tubing line size can be changed on-site by changing a holder / insert component rather than replacing the complete valve.
Features
- For use with all tubing brands
- Line sizes from 1/16 in ID to 1 in ID on the current product page
- Integrated lockout feature with safety guard
- Interchangeable tubing holders for line-size changeout
- Reusable stainless-steel valve body
- Pneumatic or manual options across the Omnia family
- Automation, position sensing and solenoid options
- Designed for upstream, downstream and fill-finish single-use applications
Technical Specifications
Typical Applications
- Upstream
- Downstream
- Fill-finish
- PUPSIT
- Sampling
- Fluid transfer
- High-pressure pump shut-off
- Applications requiring line-size interchangeability
Omnia Manual Pinch Valves
Manual Single-Use Flow Control
The patented manual pinch valve series works with multiple tubing brands and flow kits, including reinforced tubing, and allows on-site tubing-size changes through interchangeable insert kits.
Features
- For use with all tubing brands
- Available from 1/16 in ID to 1 in ID
- On-site retrofit using interchangeable insert kits
- Two footprints: BP25 and BP50
- Reusable stainless-steel valve assembly
- Rapid tubing line-size changeout
- Suitable for continuous manufacturing
Technical Specifications
Omnia Mini Pinch Valve
Compact Single-Use Pinch Valve
The Omnia Mini Pinch Valve is intended for small-bore single-use applications and can be used with tubing or flow kits up to 3/8 in OD.
Features
- Suitable for tubing up to 3/8 in OD
- Suitable for all tubing brands
- Multiple tubing sizes can be used within the same valve footprint
- Can be close-coupled to create multiport functionality
- Suitable for gene therapy, cell therapy and vaccine production
- Available within the broader manual / pneumatic Omnia family
Technical Specifications
Typical Applications
- Gene therapy
- Cell therapy
- Vaccine production
- Upstream
- Downstream
- Fill-finish
- PUPSIT
- Sampling
- Fluid transfer
- Benchtop applications
Omnia Fluid Transfer Modules
Integrated Systems for Single-Use Applications
Carten’s Omnia Fluid Transfer Modules use the patented pinch-valve platform to create turnkey systems for plug-and-play automated fluid transfer between applications.
Features
- Fluid transfer across multiple applications without valve changeout
- Plug-and-play integrated mechanical system
- Integrated instrumentation
- Electrical and PLC hook-up
- Full FAT
- Multiple tubing-size holder options
- Manual, electric or pneumatic options
- Suitable for automated and mobile fluid-transfer applications
Technical Specifications
Typical Applications
- Upstream transfer
- Downstream transfer
- Fill-finish
- PUPSIT
- High-pressure pump shut-off
- Automated fluid transfer
- Mobile transfer systems
- Applications requiring multiple line sizes
Custom Engineering
When Standard Valves Are Not Enough
Carten states that it supplies individual valves through to full integrated solutions and partners with customers from enquiry through design, manufacture, supply and after-sales service. The Acuflow brochure additionally highlights custom valve development using 3D modeling and CFD analysis to optimize flow paths, minimize dead space and improve CIP / SIP efficiency.
Capabilities
- Custom multiport valves
- Block valve configurations
- Tandem / access-valve configurations
- Flow-path optimization
- Dead-leg reduction
- SolidWorks 3D drawing packages
- Computational fluid dynamics
- Finite element analysis
- OEM collaboration
- Custom integrated fluid-transfer systems
Quality & Compliance
Engineered for Critical Process Environments
- USP Class VI <87> / <88> for relevant BNW valve components
- ASME BPE referenced across leak testing, electropolishing and passivation practices
- ANSI FCI 70/2 Class VI leak-testing requirements on relevant bioprocess valve ranges
- Clean White Room manufacturing for Carten’s bioprocess products
- PED / material certification and additional validation capabilities described in the Acuflow capabilities brochure
- Flow, pressure, durability, SIP thermal-cycle and drainability testing capabilities referenced in the Acuflow brochure
Carten In-House Engineering
- SolidWorks 3D design
- Computational fluid dynamics
- Finite element analysis
- Surface profilometry
- Borescope analysis
- Flow and pressure testing
- Durability testing
- SIP thermal-cycle testing
- Drainability analysis
- New-product validation
Choose Your Flow-Control Approach
Why Carten?
- Global specialist in high-performance valves and flow solutions
- Portfolio spans individual valves through integrated systems
- Multi-use and single-use bioprocess solutions
- Engineer-to-order capability for customer-specific applications
- In-house design, manufacturing, testing and validation expertise
- Strong focus on cleanliness, containment, delivery and process reliability
Acuflow + Carten
Global Valve Engineering. Local Application Support.
Acuflow helps translate the process requirement into the right Carten platform — multi-use, single-use, custom valve or integrated transfer solution.
Talk to an Expert
“Let’s Build Your Fluidic Solution Togetherâ€
Talk to an Expert
What Are You Trying to Control?
Whether you need a sanitary diaphragm valve, a compact block configuration, single-use pinch control or an integrated transfer module, start with your process requirement.
