From micro-flow dosing to high-volume bulk transfer, peristaltic pumps deliver accuracy, cleanability, and flexibility for every process scale — from analytical R&D to hazardous-area production.

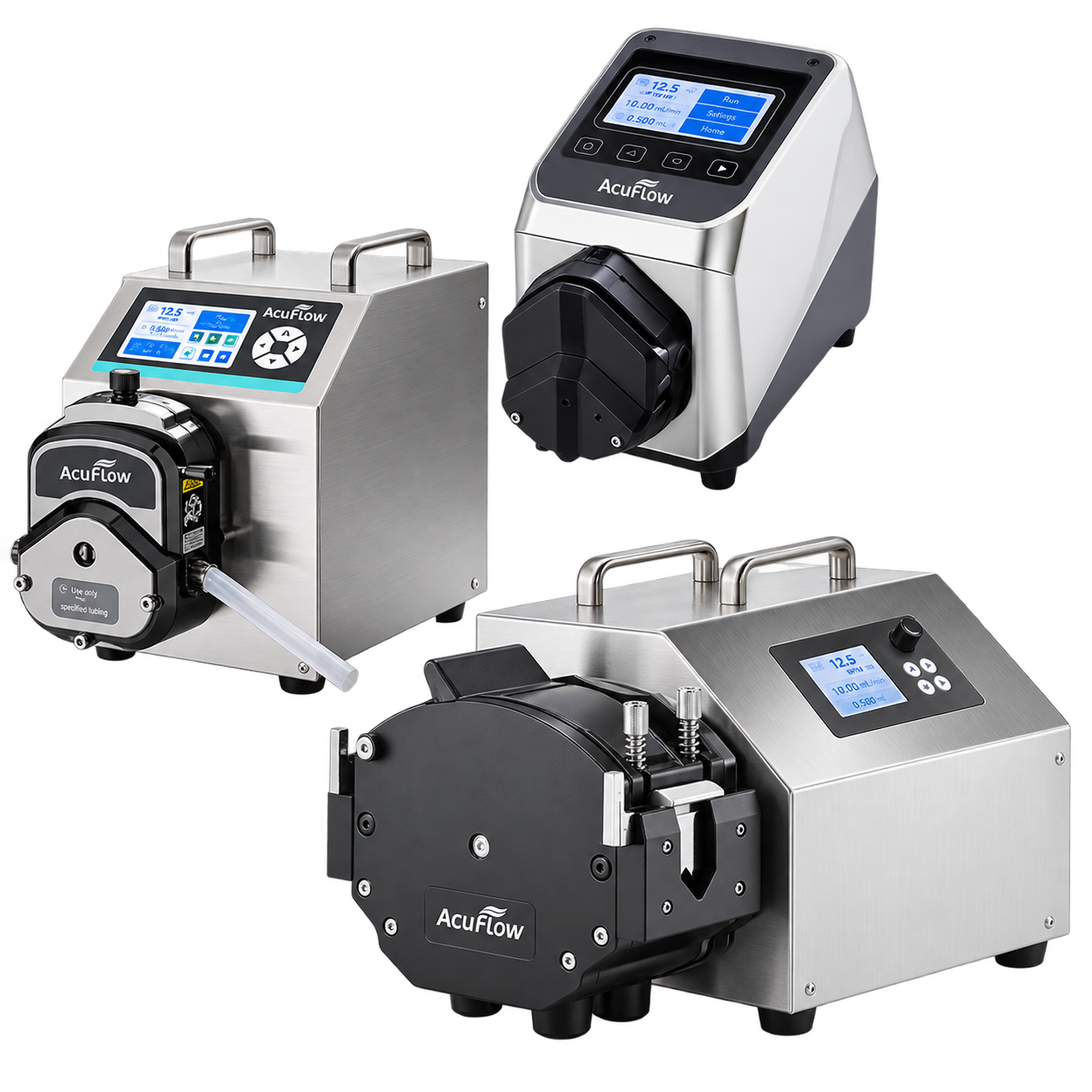

Pump Series
A complete range of peristaltic pumps, including compact lab units, industrial process drives, hazard-rated systems, multi-channel platforms, and OEM integrations.
Click a pump to view its features

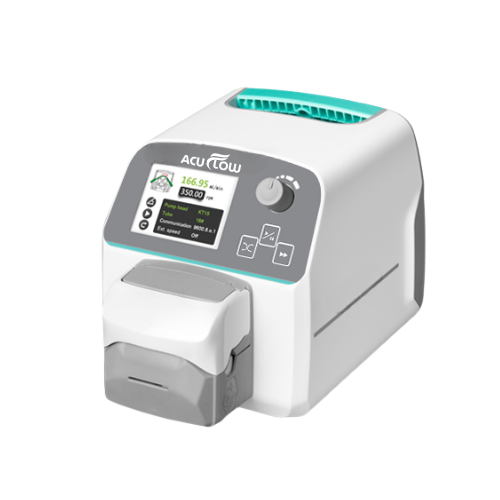

MicroFlow Systems (MFS)
Features
- Precise control for low-flow fluid transfer
- Compact benchtop design for space-efficient setups
- Fine speed adjustment down to 0.1 rpm for precise and repeatable low flow fluid transfer
- Flow calibration on intelligent configurations
- Power-off memory – automatically retains the last operating setting
Technical specifications
| Specification | MicroFlow Systems (MFS) |
|---|---|
| Flow Range | 0.003 mL/min – 326 mL/min |
| Speed Range | 0.1 – 350 rpm |
| Speed Resolution | 0.1 rpm |
| Display | LCD / Colour |
| IP Rating | IP31 |
| External Control | Start / Stop / Direction / Speed |
| External Speed Control | 0–5 V, 0–10 V, 4–20 mA |
| Communication | RS485 (Modbus) |
| Power | 230 VAC |
| Channels | Single |
| Primary Use | Analytical / R&D / Sampling / Micro-volume transfer |
LabFlow Systems (LFS)
Features
- Flow capability up to approximately 3.1 LPM – extended up to 6 LPM
- Flow rate, preset parameters, and system configurations — all displayed on a single screen
- Modes: Continuous transfer; Fixed-volume dispensing; Timed dispensing with time delay interval
- Intelligent calibration function
- 60 customised programme storage for quick access and easy recall
- 3-level security, Open-Head Sensor protection, Auto Start and more
Technical specifications
| Specification | LabFlow Systems (LFS) |
|---|---|
| Flow Range | Approx. 0.0053–3100 mL/min, extended up to 6000 mL/min |
| Speed Range | 0.1 to 600 rpm |
| Speed Resolution | 0.01 rpm |
| Speed Accuracy | Up to < ±0.5% |
| Display | LCD Colour 4.3" Touchscreen |
| IP Rating | IP31 / IP66 |
| Calibration | Flexible calibration – personalised parameter setting |
| Volume / Time Dispensing | Yes |
| Back Suction | Yes — save each drop / improve accuracy |
| Analogue Input | 0–5 V / 0–10 V / 4–20 mA |
| Communication | RS232 / RS485 / Modbus (RTU, TCP/IP) / Ethernet |
| Power | AC 110–220 V ±10%, 50 Hz / 60 Hz |
| Pump Drive Housing | ABS Plastic / Aluminium Alloy / Stainless Steel |
| Primary Use | R&D / Lab Transfer / Volumetric Dispensing / Process |
ProcessFlow Systems (PFS)
Features
- Designed for manufacturing and continuous process operation
- Industrial Automation – Ready Design
- EMC-Verified industrial configurations
- Multi-layer PCB protection for dust, moisture, static and corrosion resistance
Technical specifications
| Specification | ProcessFlow Systems (PFS) |
|---|---|
| Flow Range | 0.69 mL/min – 12 L/min |
| Speed Range | 0.1 – 600 rpm |
| Speed Resolution | 0.01 rpm |
| Display | LCD / Industrial Colour Touchscreen |
| IP Rating | IP31 / IP66 |
| Flow Calibration | Flexible calibration – customise your calibration parameters |
| Analogue Control | 0–5 V / 0–10 V / 4–20 mA |
| Communication | RS232 / RS485 / Modbus RTU |
| Power | AC 110–220 V ±10%, 50 Hz / 60 Hz |
| Pump Drive Housing | Aluminium Alloy / Stainless Steel |
| Primary Use | Manufacturing / Process Transfer / Automation |
BulkFlow Systems (BFS)
Features
- Designed for large volume transfer up to 28 LPM
- High-torque drive systems for handling viscous liquids
- Precision control of speed and flow
- Suitable for production transfer and bulk fluid movement
Technical specifications
| Specification | BulkFlow Systems (BFS) |
|---|---|
| Flow Range | Approx. 0.0019–28.15 L/min |
| Speed Range | Up to 300 rpm |
| Speed Resolution | 0.1 rpm |
| Display | LCD / Industrial Touchscreen |
| IP Rating | IP31 / IP66 |
| Flow Calibration | User-defined calibration – configure parameters to your process |
| Analogue Control | 0–5 V / 0–10 V / 4–20 mA |
| Communication | RS232 / RS485 / Modbus |
| Primary Use | Bulk Transfer / Production / High-Volume Transfer |
HazardSafe Systems
Features
- ATEX certified Zone I/II rated
- Engineered for hazardous-area applications
- Advanced digital control with intelligent operating functions
- Industry-first functionality in the hazardous segment — digital parameter control, versatile operating modes, timed volumetric dispensing, intelligent calibration and more
- IP66 weather-proof industrial housing enclosure
Technical specifications
| Specification | HazardSafe Systems |
|---|---|
| Flow Range (Max) |
LabFlow – 2.5 / 3 / 6 LPM ProcessFlow – 12 LPM BulkFlow – 28.1 LPM |
| Speed Range | 0.1 – 300 / 600 RPM |
| Display | Industrial duty LCD interface |
| Working Mode | Continuous transfer Volume dispensing with time delay interval |
| Flow Calibration | Flexible calibration – customise your calibration parameters |
| IP Rating | IP66 |
| Explosion Protection | Ex II2G Ex db IIC T4 Gb; Ex II2D Ex tb IIC T130°C |
| External Control | 0–5 V, 0–10 V, 4–20 mA |
| Communication | RS485, Modbus (RTU mode) |
| Primary Use | Hazardous Area / Solvent / Chemical / Industrial Transfer / API |

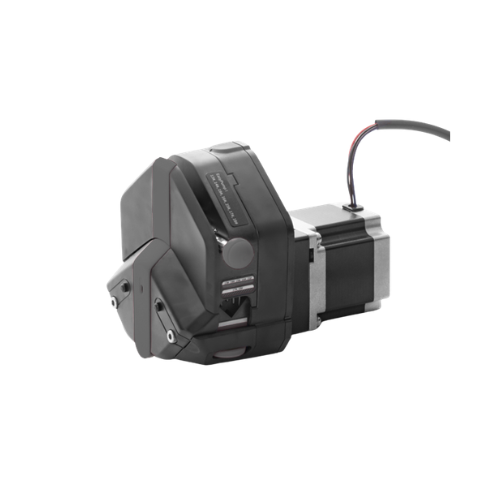

OEM Design Capabilities
Features
- Fixed-speed and variable-speed configurations
- Fully integrated pumping modules
- Analogue, pulse and frequency control
- RS232 / RS485 communication options
- Compact and flexible mounting configurations
- Multiple drive options: DC geared, stepper and closed-loop motors
- Single-, dual- and multichannel configurations
Technical specifications
| Specification | OEM Design Capabilities |
|---|---|
| Flow Range | 0.002 mL/min to 12 L/min |
| Configuration | Pump Head + Motor — Complete Module |
| Speed Type | Fixed RPM / Variable |
| Display | None / Integrated / Customer HMI |
| Integration | Embedded / Panel / Equipment Mounted |
| Primary Use | Instrument / Equipment / Machine Integration |

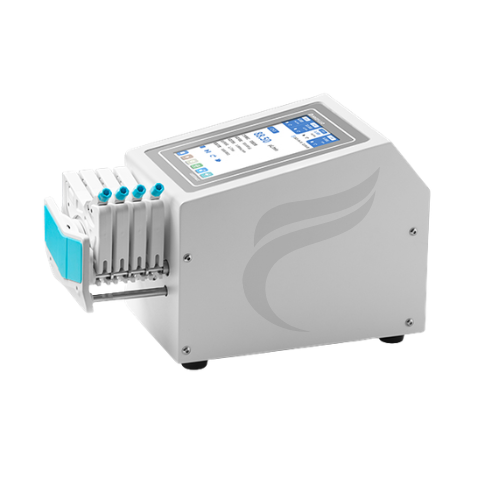

Multi-Channel with Flexible Channel Configurations
Features
- Multi-channel with independent channel control
- 10-roller design for low-pulsation and superior accuracy
- Intelligent control architecture with mode-specific algorithms for high stability and precision
- Multi-channel, multi-mode operation with multi-group recipe storage
Technical specifications
| Specification | Multi-Channel Systems |
|---|---|
| Flow Range | 0.02 µL/min – 48.37 mL/min |
| Speed Range | 0.01 to 150 rpm |
| Speed Resolution | 0.01 rpm |
| Number of Channels | 4 |
| Display | HD Colour 5" Touchscreen |
| IP Rating | IP31 |
| Calibration | Flexible calibration – personalised parameter setting |
| Operation Mode | Flowrate Time & Volume Time & Speed Volume & Speed |
| Communication | RS232 / RS485 |
| Power | AC 110–220 V ±10%, 50 Hz / 60 Hz |
| Pump Drive Housing | ABS Plastic |
| Primary Use | R&D / Lab Transfer / Volumetric Dispensing / Fill & Finish |
Talk to an Expert
“Let’s Build Your Fluidic Solution Together”
